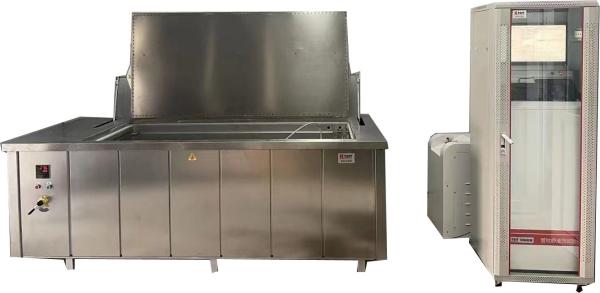

Pipe Static Customized Hydrostatic Pressure Testing Machine Computerized

Name: Pipe Static Customized Hydrostatic Pressure Testing Machine Computerized
Brand: JINHAIHU
Price: 1 USD

Brand Name : JINHAIHU

Model Number : XGY-10C

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability : 20 sets per month

Delivery Time : 7 work days

Packaging Details : Standard export wooden cases

Place of origin : Beijing, China

Product Name : Hydrostatic Pipe Static Pressure Tester hydrostatic pressure testing machine

Model : XGY-10C

Max. pressure : 10MPA, 100BAR, 16MPA, 160BAR

Pressure resolution : 0.01MPA, 0.1BAR

Test stations : 5, 10, 15, 20, 25, 30, 50 can customized

Temp. range : 15-95 ℃

Constant pressure accuracy : -1%~+2%

Material of water tank : 304# stainless steel

Material of end caps : 304# stainless steel or carbon steel

Power : AC380V ±10% ,50/60Hz

Standards : ISO 1167, ASTM D1598/1599

Contact Now

Hydrostatic Pipe Static Pressure Tester hydrostatic pressure testing machine

Ⅰ. Apply:

Hydrostatic Pipe Static Pressure Tester hydrostatic pressure testing machine mainly used to determine the resistance of thermoplastics pipes and short-time hydraulic burst to constant internal water pressure at constant temperature. It is applicable to thermoplastic pipes intended for the conveyance of fluids. It confirms to ISO1167,ASTM D1598 and ASTM D1599.

Ⅱ. System Feature:

1. Industrial tablet control, direct control.

2. The machine with "precision pressure control unit" multi-channel combination.

3. Each station is independently controlled no interference.

4. 5-statiions, 10-stations, 15-stations, 20-stations and other multi-station optional, up to 60 stations and above. With a hydrostatic test, blasting test.

5. Max. pressure: 3, 6, 10, 20MPa ...

6. Pipe diameter range: Φ16 ~ 2000mm can customized.
7. Operator-friendly display interface provides multi languages to suit the most varied customer requirements.
8. It is convenient to calibrate pressure during testing, meaning that the system may continue running during calibration(optional).
9. Multistage protections are from electric partt, mechanical part as well as software.
10. Reliable data exchange via TCP/IP protocol.

Ⅲ. Meet standards:

ASTM F1335, ASTM D1598, 1599, ISO 1167, 9080, 1756, 13477, GB/T 15560, 18252, 6111, CJ/T 108

Ⅳ. Technical parameters:

Pipe diameter range		Φ8~Φ1600mm
Working stations		3, 6, 10, 15, 20, 25, can customized
Operation mode		PC control
Pressure range		0.2~10MPa (or customized)
Pressure resolution		0.001MPa, 0.01Bar
Pressure control accuracy range		-1%~+2%
Measuring range		5%~100% F.S.
Timing range		1s~9999H 99M 99S
Timing accuracy		±0.1%
Display resolution		1s
Min. Time setting unit		min
Temperature control system		15~95℃ with cooling system
Temperature control accuracy		±0.5℃
Power supply		380V, three-phase four-wire system

Ⅴ. Configurations:

1. Pressure control host;

2. Pressure source;

3. End caps(304# stainless steel);

4. Constant- temperature water tank;

5. Refrigeration system.
